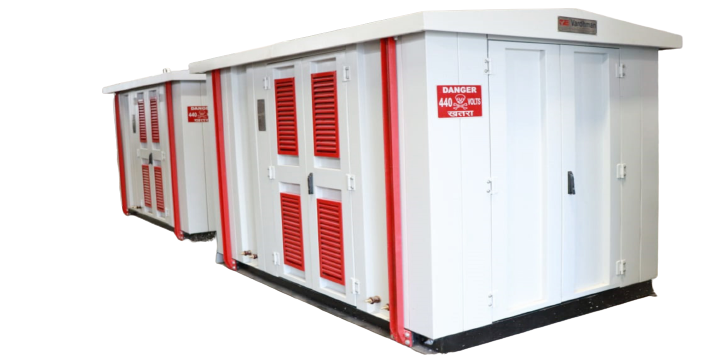

COMPACT SUBSTATION

COMPACT SUBSTATION

Robust, Secure, space saving power distribution solutionwell and efficiently.

SALIENT FEATURES :

  • Reduced electrical losses as CSS can be installed near load centres.
  • Total economy in cost is better.
  • Higher degree of safety and operational reliability is achieved by HT
    and LT switchgear and protective relays to avoid overloading.
  • Reduction in logistic cost as USS is delivered as a single unit.
  • Low civil / foundation cost/ Less footprints/ save space.
  • Enhanced safety from environmental wear and tear
  • Appealing aesthetics

GET a quote now ?

Technical Data

Ratings & Voltage Class

3 Phase, 100 KVA up to 2500 KVA up to 24KV Class.

Applicable Standards

IEC 62271 – 202 (IEC 61330) , Relevant IS.

Enclosure Construction

Modular

Maximum Ambient Temperature

50 Degree

Ventilation

Air Natural

Temperature Class

K 10

MV & LV Compartment

IP 54

Transformer Compartment

IP 23

MV Swicthgear Rated Voltage

12/24KV

Impulse (Kv p)

75/125

VCB Rated Normal Current

630
