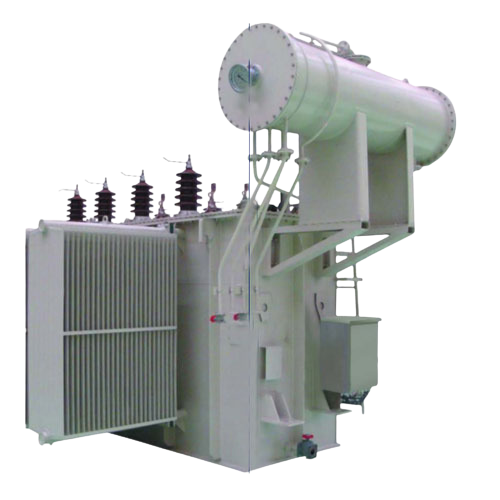

SOLAR INVERTER TRANSFORMERS
Robust, Reliable & Highly Energy Efficient Transformers.
SALIENT FEATURES :
- Highly energy efficient solar inverter transformers for better returns.
- Special multiple windings [3, 4, 5, etc] design on primary side as
per requirement. - Transformer enables to connect multiple inverters to the grid with
minor number of transformers. - Robust design with extra enforcement to endure fluctuations.
- Earth Shield is provided between the HV & LV windings to reduce
the harmonics & path to ground any residual resonance. - Strengthened Isolation, Extra cooling arrangement to increase the Life span.
- Enhanced safety from environmental wear and tear and appealing
aesthetics. - Type test available of solar inverter transformer.
GET a quote now ?
Technical Data
Ratings & Voltage Class
3 Phase, up to 16 MVA & up to 36KV Class.
Applicable Standards
IS: 2026, IEC: 60076, BS, SANS, ANSI etc.
Looses
Less Than 0.9% or as required.
Maximum Ambient Temperature
50 Degree
Ventilation
Air Natural / Air Forced
Insulating Fluid
Mineral Oil or Synthetic Ester Oil confirming to relevant
standards or as per customer requirement.
Impedance
5% to 7.5% or As per requirement
Tapping
Off Circuit Tap Changer (OCTC) / On load tap Changer (OLTC)
Vector Group
Dyn11, Dyn5, Yzn11 etc
Frequency
50 / 60 Hz
Insulation Class
A,B
Cooling
ONAN/ONAF
Winding Material
Copper(Cu)
Accessories and Fittings
As per customer requirement.
